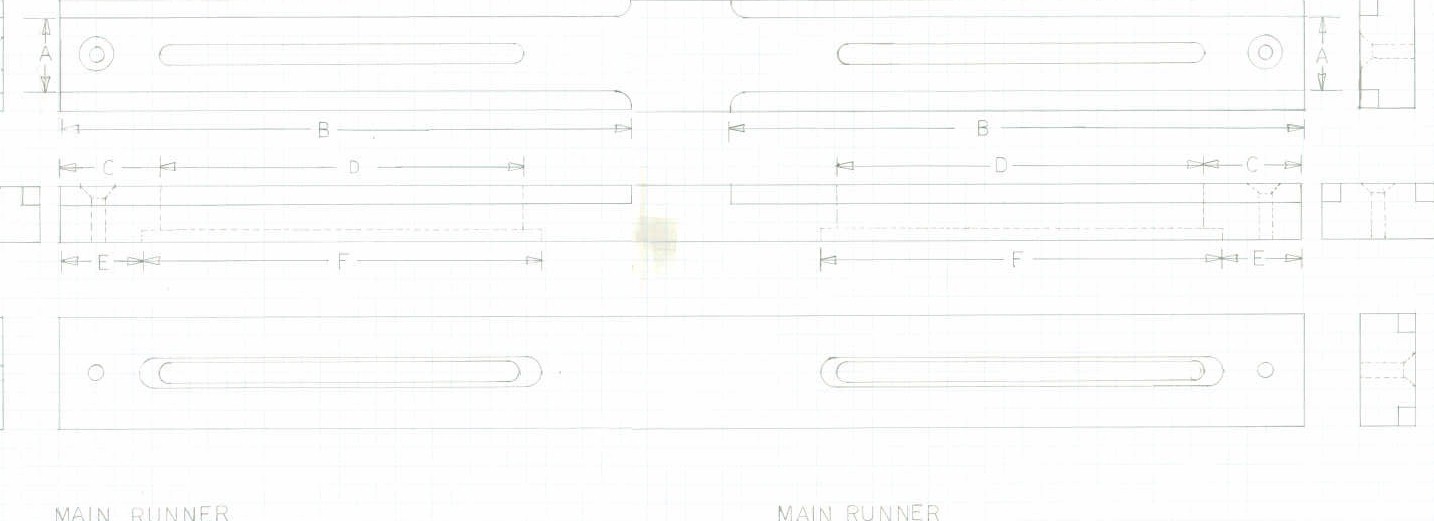

Foot Rope Main Runner Diagram Main Runner Construction Notes

I have omitted any confusing hidden lines, etc.
A = 1"

B = 7 5/8"

C = 1 5/16"

D = 4 7/8" (Also changed from 5", in the previous e-mail )

E = 1 1/16"

F = 5 3/8"
